High concentration oxygen analyzer OA-I series

This is an oxygen analyzer for clean gas using limiting current method of Zirconia electrolyte.

Characteristic

  • 1.Not affected by atmosphere
  • 2.Long term stability measurement(2 years warranty※)
  • 3.Panel mount is possible
  • 4.Battery drive is possible

Download catalog

Application example

・% level oxygen
・Research, Laboratory
・Assembling device etc.

OA-I series's

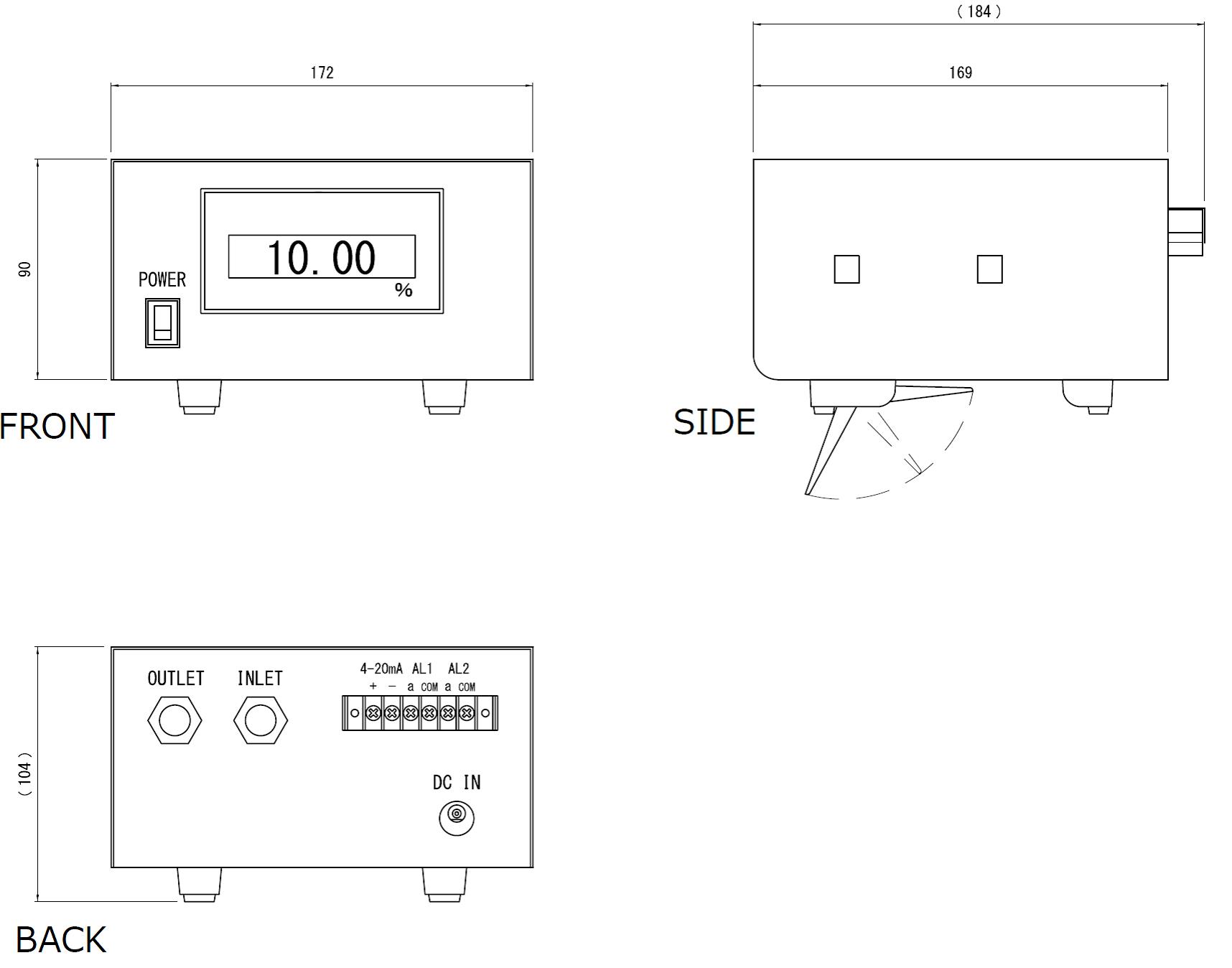

Dimensions

Dimensions

specification

MODEL

OA-X

OA-

PRINCIPLE

Limiting current method of Zirconia electrolyte

INSTALLATION

Portable, Panel mount

APPLICATION

O2PSA, O2-enriching equipment etc.

Medical synthetic air etc.

MEASUREMENT

0~95%O2

0~25%O2

DISPLAY

00.0~100.0%O2

00.00~25.00%O2

OUTPUT

4~20mADC to 0~100%O2

4~20mADC  to 0~25%O2

ALARM

Alarm output 2points(Contact A)

LINEARITY

 Less than ±1%FS

REPEATABLITY

 Less than ±1%FS

RESPONSE

 90% reading 10sec.(Swinging to a high density side)

DRIFT

 Less than ±1%FS/month

SAMPLING & FLOW

 Injection 0.5~2.0L/min.

SAMPLE PRESSURE

 0.01~0.05 MPa

TEMP.

 50℃ MAX.

CONNECTION

 INLET & OUTLET:Rc1/4

WARM-UP TIME

 Approx. 20min.

POWER

 Main unit:11~48VDC AC adapter:100~240VAC 50/60Hz

AMBIENT TEMP.

 -10~50℃

WEIGHT

 Approx. 2.0kg

SIZE

 W172×D184×H90(except tilt leg)
