Guide probe

The guide probe is a sampling equipment which uses a flow of sampling gas. It is installed at the place which the sample gas flow exists such a as gas duct. The utility of instrumenting air and the power and so on is unnecessary because of sampling which used a sample gas stream.

Characteristic

  • 1.The utility is minimum, because of sampling which used a sample gas stream
  • 2.It is possible to select low dust type or high dust type
  • 3.Simple structure, easy maintenance at the site

Download catalog

Application example

・Boiler
・Metal industry each process
・Non-metal industry each process
・Ceramics furnace
・Incinerator furnace
・Other high temp. exhaust gas

Guide probe's

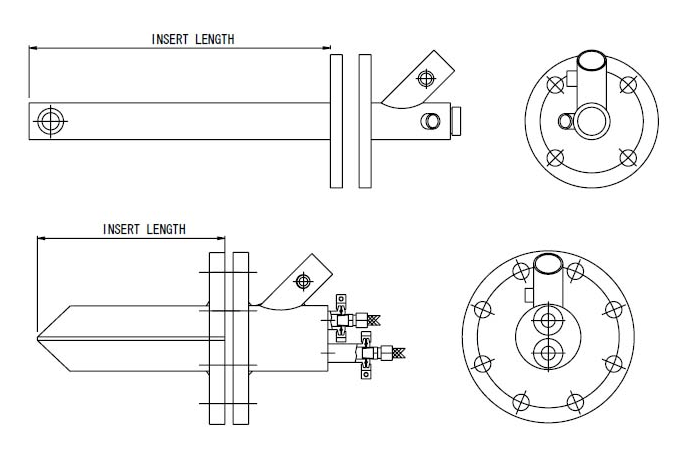

Dimensions

Dimensions

specification

Material Low dust type:SUS316/
High dust type:SUS316L
Installation Low dust type:JIS5K50A～/
High dust type:JIS5K80A～
Length of insetion As your specification (MAX.1500㎜)
Sample gas temp. 700℃MAX
Sample gas pressure ±5kPa
Tubing Rc1/4
