Fixed type OXYGEN MONITOR Air-C Series

This is a fixed type of oxygen monitor using limiting current method of Zirconia electrolyte. It measures oxygen concentration in ambient air, and it alarms by buzzer etc. when the concentration passes the setting value set in advance.

Characteristic

  • 1.Long term stability measurement
    (2 years warranty※)
  • 2.Maintenance free
  • 3.Analog output 4-20mA
  • 4.Remote measurement (3m,5m,10m)
  • 5.Quick response and high accuracy alarm
  • 6.Wide ambient humidity cercumstance

Download catalog

Application example

【Main application】
・ Laboratory, warehouse
・ Atmosphere using inert gas (N2, Ar etc.)
・ Underground pit

Air-C's

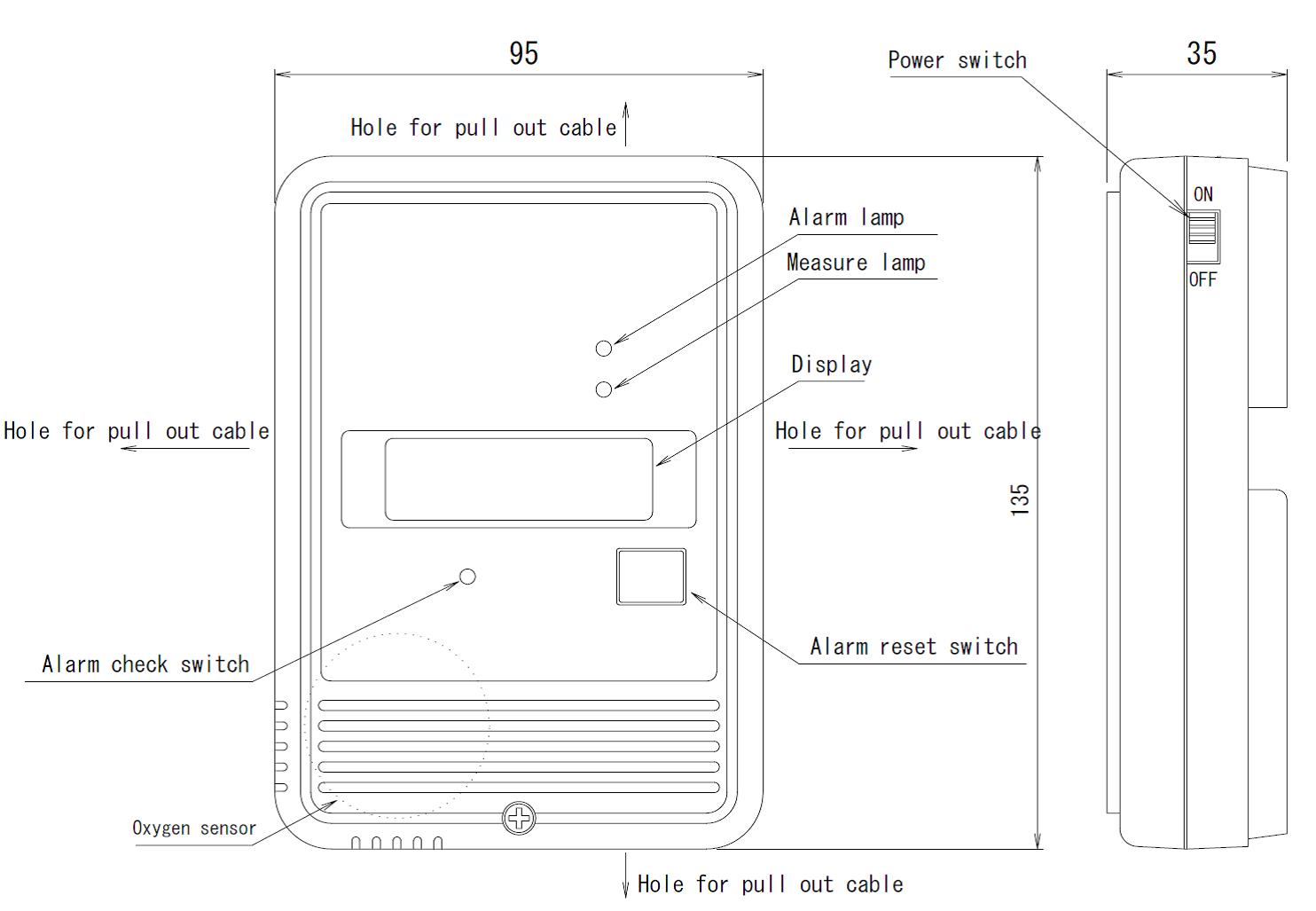

Dimensions

Dimensions

Air-CR's

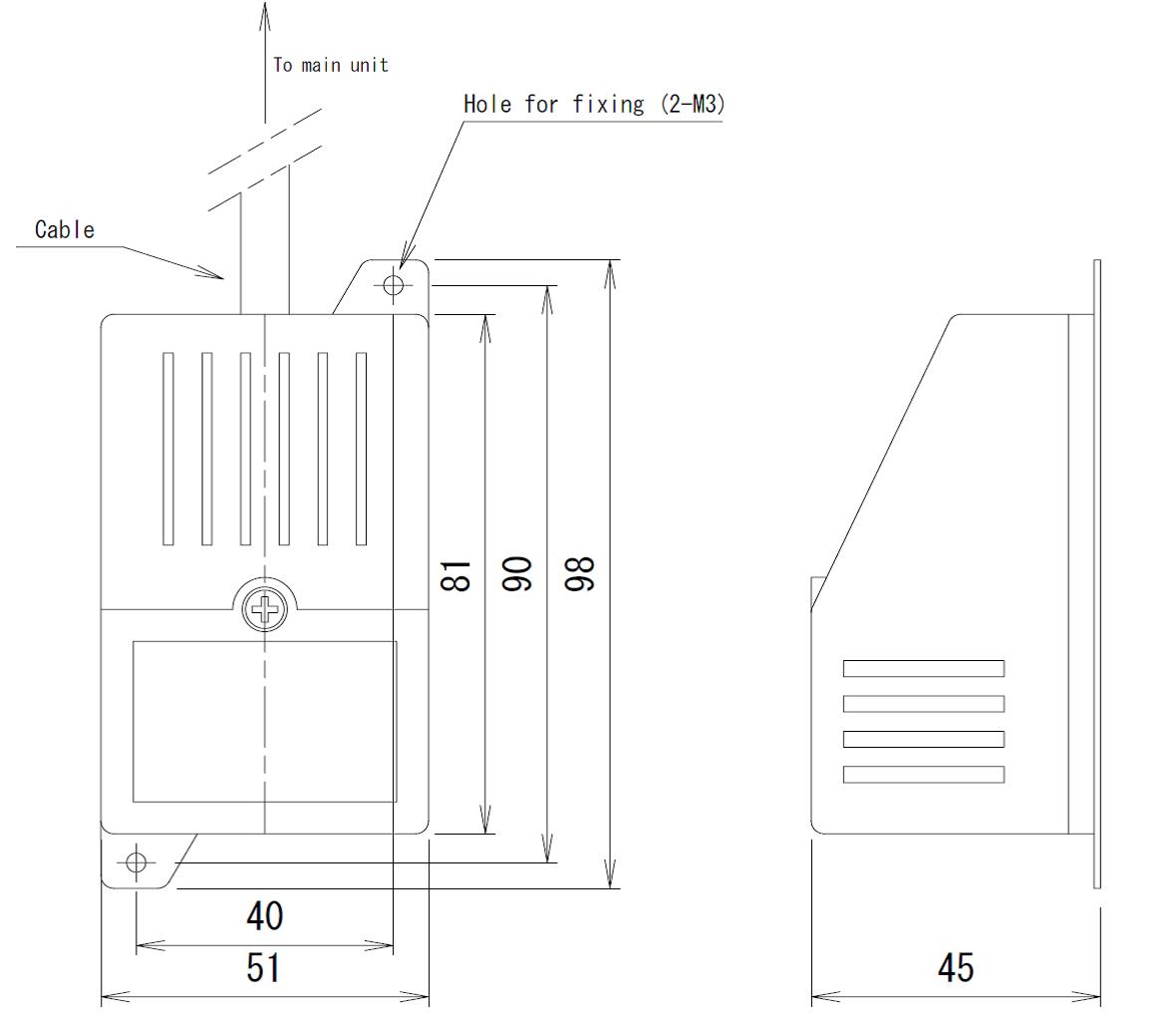

Dimensions

Dimensions

specification

MODEL

Air-C

Air-CR3

Air-CR5

Air-CR10

MOUNT

 Wall mounting (Indoor)

MEASUREMENT

 0~25 vol%O2

DISPLAY

 0.0~25.0 vol%O2

ALARM

 Low Alarm(Contact A, Lamp, Buzzer) It is possible to set in 18~21%
(Default: 19%O2), Self-maintenance(Default) or Automatic reset selectable

OUTPUT

 4~20mADC towards 0~25vol%O2

SAMPLING

Diffusion

Remote

Cable 3m

Cable 5m

Cable 10m

ACCURACY

 Less than ±0.5vol%O2

ALARM DELAY TIME

 Less than 5sec. after detecting 10~11vol% oxygen gas on 19vol% low alarm  setting

DRIFT

 Less than ±0.5vol%O2/month

ATMOSPHERE

 Less than 90%RH (No-condensing)

WARM-UP TIME

 Approx. 5min.

POWER

 90~240VAC 50/60Hz 8VA

OPERATING TEMP.

 0~45℃ (No-flammable gas)





※About 2 years warranty
・It is limited to our original products.
・It may become out of warranty in case of the strong acidity, strong alkaline corrosive gas are included in a sample.
Consult with us when you would like to use besides above specification.
