High concentration built-in type oxygen analyzer FG-I, FG-IX

This is a built-in type of FG-Ⅱ series. Sensor, indicator, flow meter, and switch are installed in a box.

Characteristic

  • 1.Comparison gas is unnecessary
  • 2.Is not affected by atmosphere changing
  • 3.Long stable measurement (2 years warranty)
  • 4.Small size, light

Download catalog

Application example

【Main application】
・Artificial air
・Oxygen PSA
・Air eliminator
・Portable application

High concentration built-in type oxygen analyzer FG-I, FG-IX's

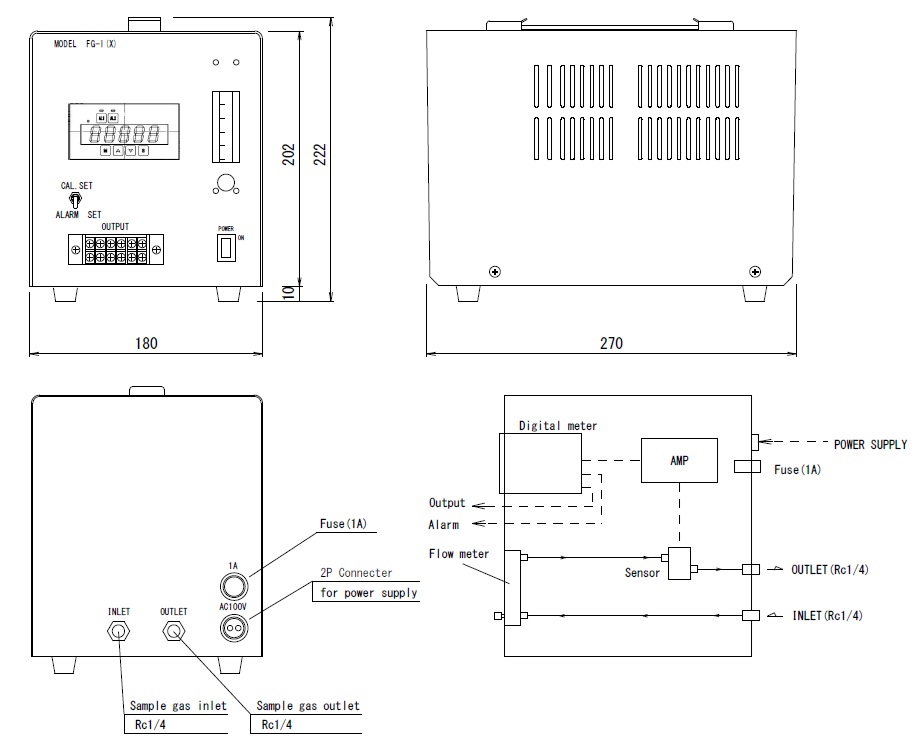

Dimensions

Dimensions

High concentration built-in type oxygen analyzer FG-I, FG-IX's

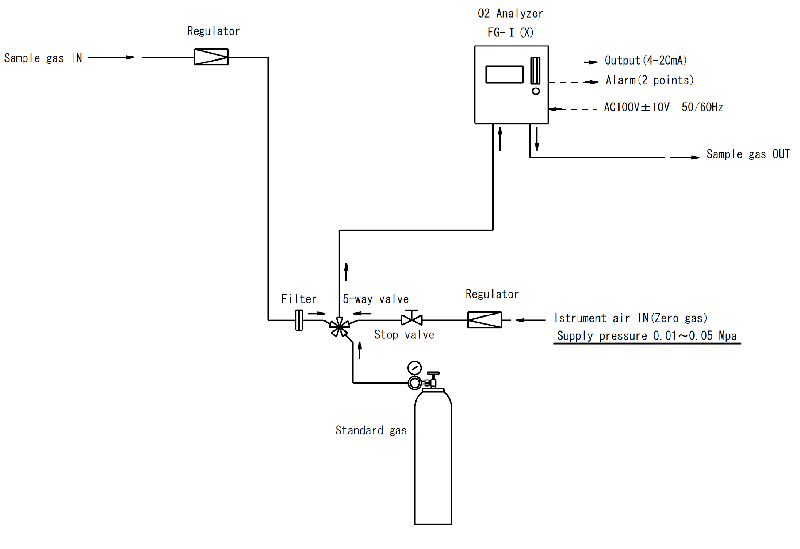

Accessory selection flowchart

flowchart

specification

Ⅰ． Specification

FG-I

FG-IX
Principle Limiting current method of Zirconia electrolyte
Construction

 SS box, FG sensor, Amplifier, Digital meter, Sampling pump, Flow meter etc.<br>Accessory：Power cable
Measurement range

0～25.00％O2

0～95.00％O2
Display

00.00～25.00％O2

00.00～100.00％O2
Scaling range

0～25%O2

0～100%O2
Output 4~20mA

Alarm

 2 points of contact C

Response

 90% reading in 10 sec. (Swinging to a high concentration side)

Linearity

 Less than ±1%/month

Repeatability

 Less than ±1%/month

Drift

 Less than ±2%/month

Sampling

 Injection

Flow rate

 １±0.5L/min.（Adjustment by needle valve）

Connection

 Piping：Rc1/4（Back panel of box）Wiring：2P connector(AC power）Electric terminal of front panel(Output, Alarm)

Warm-up time

Utility

Ambient temp.

 Approx. 10 min.Power source 100VAC　50/60Hz　50VA-5 ～ +45℃

※About 2 years warranty
・It is limited our original instrument only.
・Consumption parts such as filter, O-ring are except
・In case of the sampling gas contains strong acidity, strong alkaline, or corrosiveness, it may be out of warranty.
